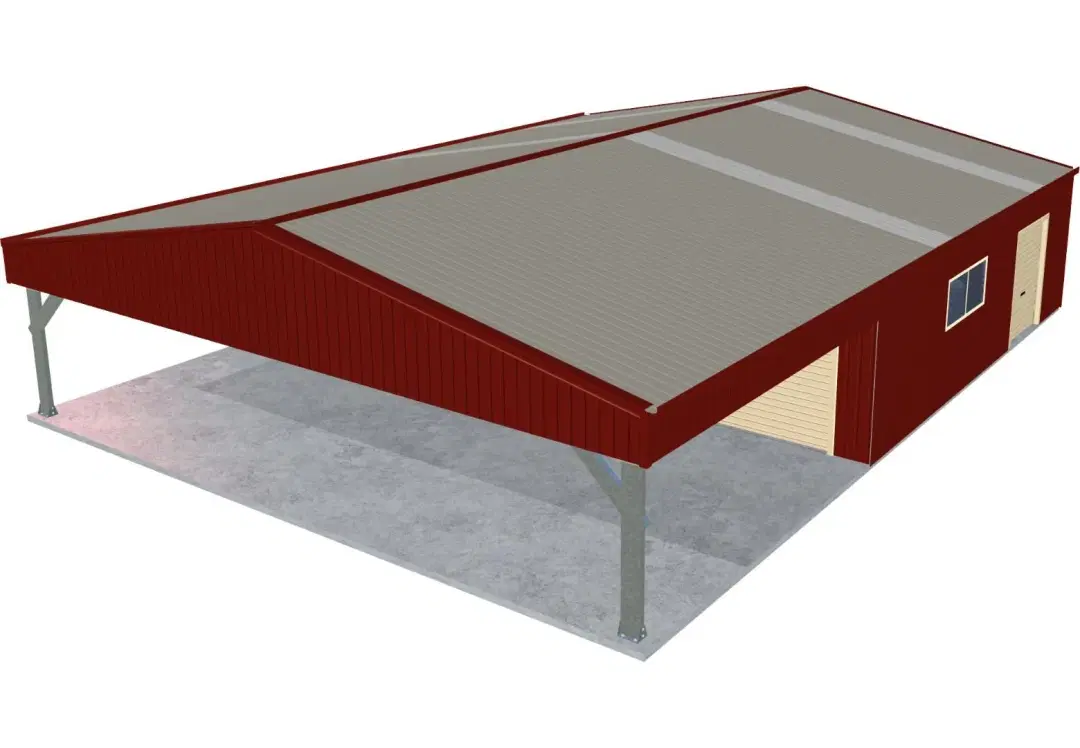

11.5m x 15m x 2.75m Gable Shed
Product information
from
$30,863.00
Description

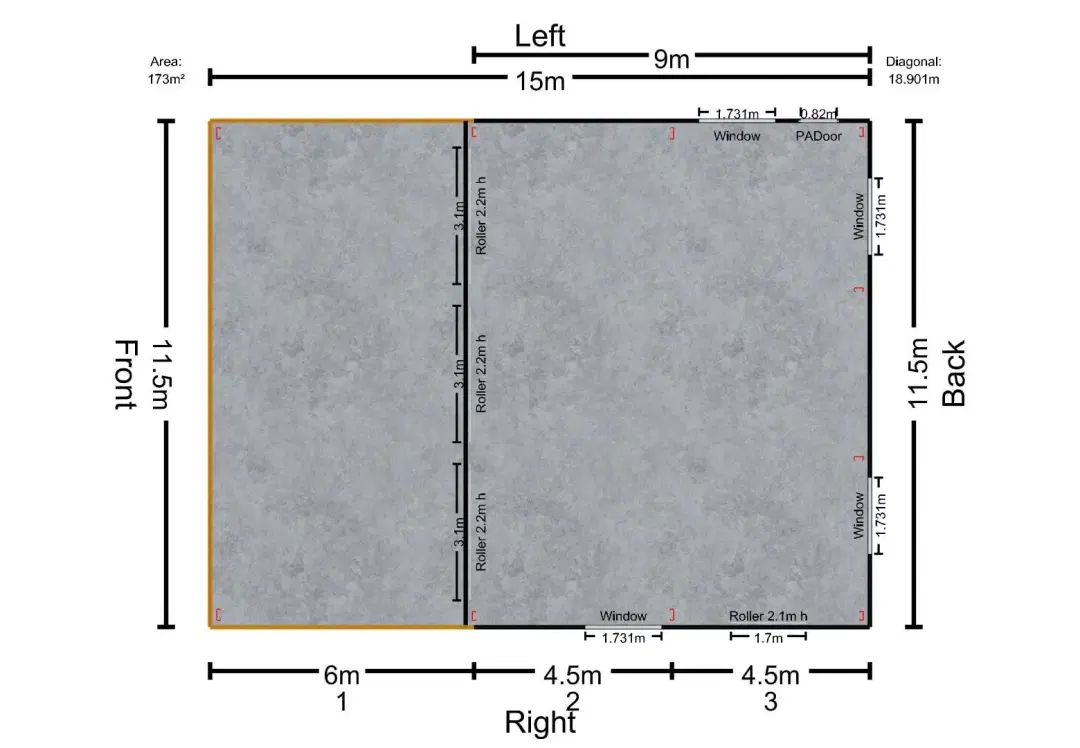

Main Structure
- Roof Type: Gable- Roof Pitch: 11°
- Width: 11.5m
- Length: 15m
- Height: 2.75m
- Bays: 6m, 4.5m, 4.5m
- Bay Amount: 3
- 1 x Internal Dividing Walls
Sheeting
- Roof: Trimdek 0.42BMT- Wall: Trimdek 0.42BMT
Extras
- 1 x PA Door 2030mm (H) x 820mm (W) Single- 1 x Roller Door 2100mm (H) x 1700mm (W)
- 3 x Roller Door 2200mm (H) x 3100mm (W)
- 4 x Skylight
- 4 x Window 790mm (H) x 1731mm (W), Glass: 4mm Clear Float, Fly Screen: None, Barrier & Fly Screen: None, Lock: None
- Wall Insulation: None
- Roof Insulation: None
Additional details
Specifications
View the detailed specifications and measurements for this shed design.
- 1 x PA Door 2030mm (H) x 820mm (W) Single
- 1 x Roller Door 2100mm (H) x 1700mm (W)
- 3 x Roller Door 2200mm (H) x 3100mm (W)
- 4 x Skylight
- 4 x Window 790mm (H) x 1731mm (W), Glass: 4mm Clear Float, Fly Screen: None, Barrier & Fly Screen: None, Lock: None
Brackets
Below is a list of brackets and bolts used in our sheds. All brackets are made from at least 3mm thick steel for maximum strength and durability.
PA Door Jamb Bracket
- 3mm Galvanised Steel
Roller Door Jamb Bracket
- 3mm Galvanised Steel
HD150 - C150 Columns & Mullions
- 3mm Galvanised Steel
HD200 - C200 Mullions
- 5mm Hot Dipped Galvanised Steel
HD250 - C250 Mullions
- 5mm Hot Dipped Galvanised Steel
HD250 - C250 Columns
- 5mm Hot Dipped Galvanised Steel
Eves Bracket
- 3mm Galvanised Steel
C150 Apex Bracket
- 3mm Galvanised Steel
C150 Haunch Bracket
- 3mm Galvanised Steel
Available UniCote Colors
Designed, Engineered, Manufactured and Supplied by Roys Sheds
Other Sheds
Medina 6167
Jarrahdale 6124
South Ripley 4306
Koongamia 6056
High Wycombe 6057
Rockingham 6968
Lower Chittering 6084
Wellard 6170
Direct from our Perth Factory
We manufacture many components in-house including flashings, metal sheeting, laser cut and bent brackets, and rolled Z purlins - giving us complete control over quality and customisation.
Sheet Metal Processing
Our slitter folder machine allows us to cut and fold sheet metal to exact specifications. This enables us to produce custom flashings, and other metal components with consistent quality and accuracy.
Custom Door Manufacturing
We manufacture PA doors and other access points in-house using our laser cutting equipment. This ensures perfect fit and finish while allowing us to customize doors to your specific requirements.
Sheet Metal Work
Our sheet metal processing capabilities include slitting, folding, and pressing. This enables us to produce all the necessary components for your shed, from wall sheets to custom flashings.
Bracket Production
Using our press brake, we manufacture brackets and structural components. Each piece is precisely formed to ensure structural integrity and easy assembly.
